Operation
This thermostat functions as maintaining adjusted temperature by measuring external and internal temperature of the equipments as an expanding-liquid thermostat. If the sensor detects the heat, the liquid expands and it extends the space of diaphragm, and that power enables making and breaking contact points of the switch. It is an automatic reset product that repeats going up and down within the range of adjusted temperature.
Application
It is widely used to almost all of the heating and cooling systems that needs to adjusting temperature like hot and cool dispenser, fridge and freezer, oven, boiler, vending machine, and all sorts of cooking equipments.
The TS-SF Series Capilliary Thermostat
This is an automatic reset thermostat that has a fixed temperature type
that only operates at specific temperatures.
The TS-SF Series is widely used in products that need to operates
at specific temperatures and overheating needs to be prevented.
The temperature can be set up to a maximum of 320°C.

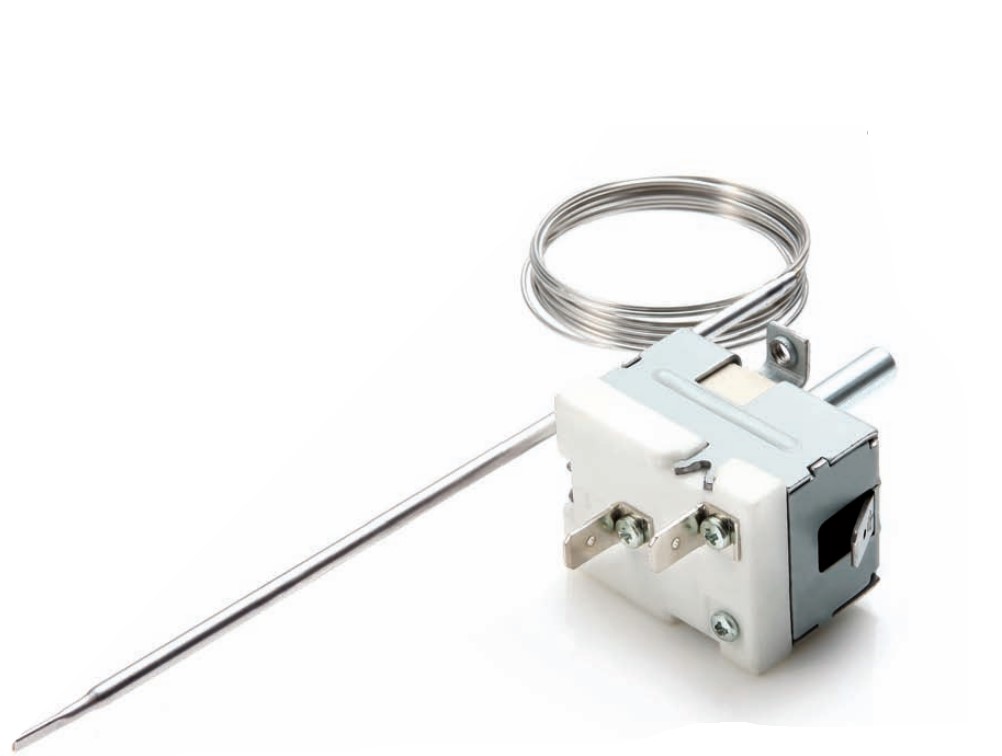

The T103 Capillary Series Adjustable Thermosat
The T103 Series has a simple structure and a built-in microswitch
that is primarily used in heating and cooling equipment.
The TSR Series Manual Reset Thermostat
This product has a manual reset type used for safety in the event that the function of the primary controller is lost. After reaching a specific temperature,
the power is cut off requiring the reset button to be manually pressed.
The TSR Series used to prevent secondary overheating of all electronic devices that include temperature controls.
