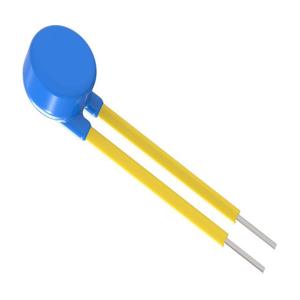

B Series Microtherm Thermal Cutout B12A.1800.L370.U253

Version Data

Version
B12A
Nom. Current (Amp)
6.3A
Temperature range (C)
60 - 190°C
Required temperature (C)
100
Temperature tolerance (C)
+/- 5°K
Sensitivity
Temperature

Lead

Type
310
Version
flexible leads
Temp. Class
F (max. 150°C)
Cross section
0.50mm² (AWG 20)
Coating
XLPE insulated wire
Conductor
tin plated copper
Colour
white
Length
100mm
Approval
UL 3398

Insulation

Type
112
Version
coating
Material
powder
Insulation class
160°C
Colour
blue
Approval
UL/VDE

Minimum order quantity of 25 peices. Volume discounts apply 50 and 100 peices.
